Industrial Hollow Shaft Motor Reducer

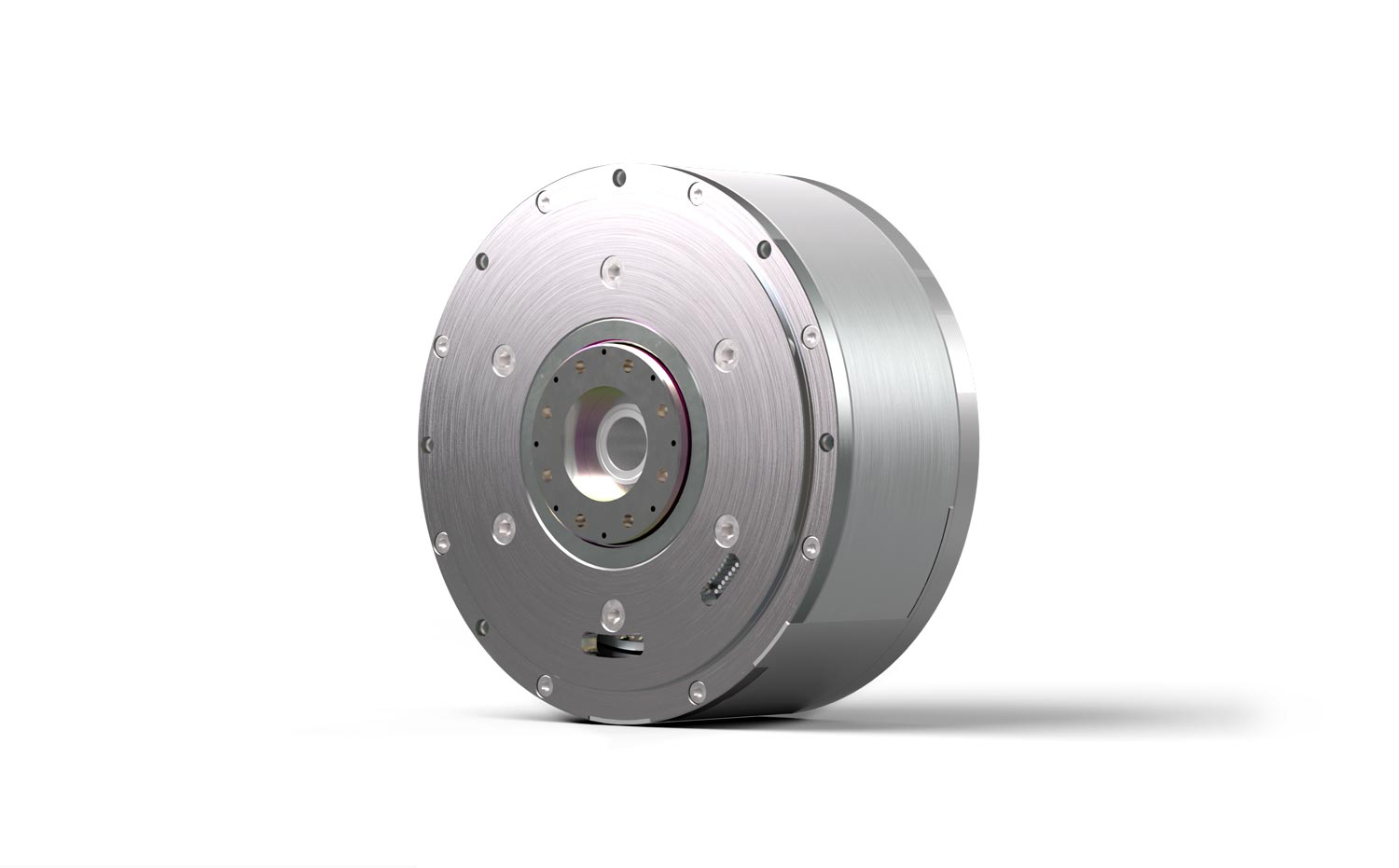

BCSA (Bonsystems Cycloidal Smart Actuator) is a motor reducer based on a cycloidal gear system. By integrating a cycloidal gear within a frameless motor, it delivers high torque even in an ultra-thin profile. Its hollow structure enhances design flexibility, while the low gear wear ensures exceptional durability.
In today’s industrial landscape, there is a growing demand for products optimized for energy efficiency and heavy-load operations. In particular, the electrification of actuators is being actively pursued as an alternative to traditional hydraulic systems, which suffer from high maintenance costs and low efficiency. Aligned with this trend, BCSA presents a new possibility as an electric actuator, replacing conventional hydraulic solutions across various applications.
Model Number Format
* FOR-Frameless Outer Rotor
Product Specifications
BCSA 090-019-H-FOR-V1
- Dimensions 97 mm / Reduction Ratio 1:19
- Rated Allowable Torque 15 (Nm)
- Motor Input Voltage 48 (V)
- Motor Rated Input Speed 4,200 (RPM)
BCSA 090-049-H-FOR-V1
- Dimensions 97 mm / Reduction Ratio 1:49
- Rated Allowable Torque 39 (Nm)
- Motor Input Voltage 48 (V)
- Motor Rated Input Speed 4,200 (RPM)
BCSA 110-019-H-FOR-V1
- Dimensions 115 mm / Reduction Ratio 1:19
- Rated Allowable Torque 24 (Nm)
- Motor Input Voltage 48 (V)
- Motor Rated Input Speed 3,600 (RPM)
BCSA 110-029-H-FOR-V1
- Dimensions 115 mm / Reduction Ratio 1:29
- Rated Allowable Torque 37 (Nm)
- Motor Input Voltage 48 (V)
- Motor Rated Input Speed 3,600 (RPM)
BCSA 110-049-H-FOR-V1
- Dimensions 115 mm / Reduction Ratio 1:49
- Rated Allowable Torque 37 (Nm)
- Motor Input Voltage 48 (V)
- Motor Rated Input Speed 3,600 (RPM)
BCSA 130-019-H-FOR-V1
- Dimensions 135 mm / Reduction Ratio 1:19
- Rated Allowable Torque 76 (Nm)
- Motor Input Voltage 48 (V)
- Motor Rated Input Speed 2,000 (RPM)
BCSA 130-029-H-FOR-V1
- Dimensions 135 mm / Reduction Ratio 1:29
- Rated Allowable Torque 116 (Nm)
- Motor Input Voltage 48 (V)
- Motor Rated Input Speed 2,000 (RPM)
BCSA 130-049-H-FOR-V1
- Dimensions 135 mm / Reduction Ratio 1:49
- Rated Allowable Torque 196 (Nm)
- Motor Input Voltage 48 (V)
- Motor Rated Input Speed 2,000 (RPM)
What should I do if I don't know the model name?
If you are unsure about the specifications of a model when making a purchase inquiry, please refer to the detailed specifications for each model on the product page before contacting us.
Can you also supply motors?
We offer module configurations that combine our reducers with motors for customers purchasing our products. If you provide the product category, desired specifications, or requirements (e.g., backlash, size, torque, etc.), we will recommend suitable models and motors.
What information is required when inquiring about a product purchase?
Please include details about the intended application and desired specifications in your inquiry. Providing detailed information allows our team to recommend the most suitable product for your needs.
For reducer purchases, it is generally helpful to provide the model and specifications of the motor you are using (or plan to use), the intended application, and the required specifications.
Robot Hardware Development Services
Provide the specifications, applications, and purposes of your desired product, and Bonsystems Co., Ltd. will support you with robot design, engineering, and hardware manufacturing through the selection of our cutting-edge smart actuator (BCSA).
For detailed inquiries regarding development, please use the contact form below.
